Description

The DE 300 FR rimless in-ceiling loudspeaker has a 35° downward sound dispersion and was specially developed for use as a front speaker (L, R, center) without impairing the field of view in home audio systems and media rooms. Due to the angled arrangement of two 5.25" bass-midrange drivers and a 1" tweeter waveguide, the DE 300 FR produces a main vertical dispersion axis of -35°. The precise tuning and the dispersion angle of 80° allow a transparent music reproduction and very good speech intelligibility.

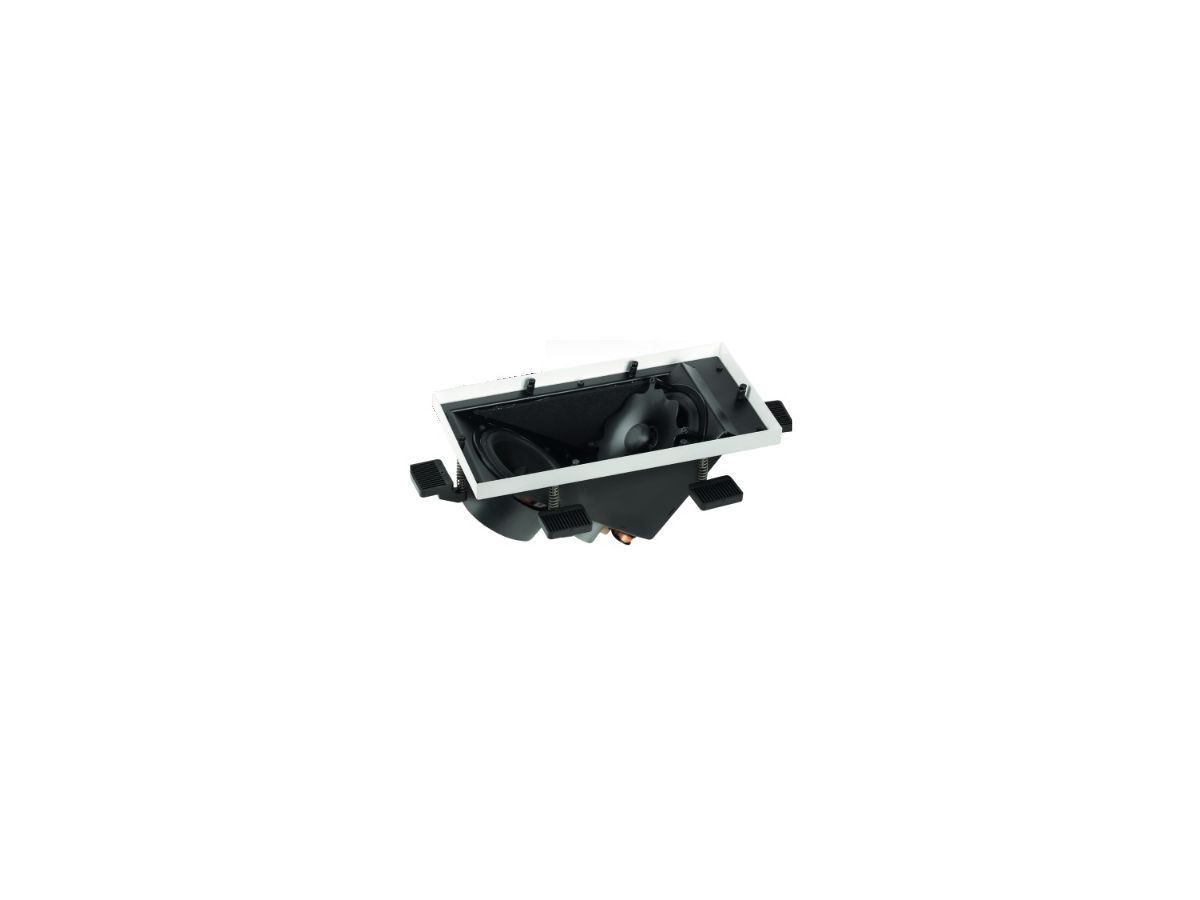

The DE-X 300 FR is constructed in three parts. First, the mounting frame is flush-mounted in the ceiling or wall and filled. Once the surface is finished, the loudspeaker chassis and the magnetic front grille are then inserted. This enables reliable installation and revision even in difficult installation situations.

Highlights

•         Very discreet appearance (only the flush front grille is visible)
•         Minimal dimensions
•         3-way front speaker for ceiling installation
•         Sound radiation directed 35° downwards
•         High speech intelligibility
•         5.25" bass + 5.25" bass-midrange + 1" tweeter waveguide
•         Very linear frequency response
•         Power handling 160 watts
•         Suitable for damp locations

Specifications

Lautsprecher Art	Front Rear Surround Einbau
Lautsprechergrösse (Zoll)	5.25"
Empfohlene Verstärkerleistung	80 W
Gewicht netto	0 kg
Gewicht brutto	0 kg

Colour and design

Color	Weiss

Konnektivität

Impedance	4 Ohm

Montage

Lochmass	34.2 cm
Einbautiefe	15 cm

Produktdimensionen

Breite	336 mm
Höhe	0 mm
Tiefe	150 mm
Länge	170 mm

Downloads

LB Datenblatt DE 300 FR_2023.pdf (1.7 MB)

Download

DE-X Einbauanleitung.pdf (3.6 MB)

Download

Accessories

LB DE-X-Tool
Werkzeug zum Abnehmen der DE-X-Gitter

Magnetic holder for effortless insertion and removal of the DE series grids

Item No: 0360-0001

24.–

Available again on 10.06.2024

LB EG-300 FR
Einbaugehäuse für DE-X 300 FR

Back box for DE 300 FR

Item No: 2206-0001

146.–

Available

LB EGB-300 FR
Beton-Einbaugehäuse für DE-X 300 FR

Back box in concrete for DE 300 FR and DE-X 300 FR incl. rigid foam spacer

Item No: 2212-0001

246.–

Available
