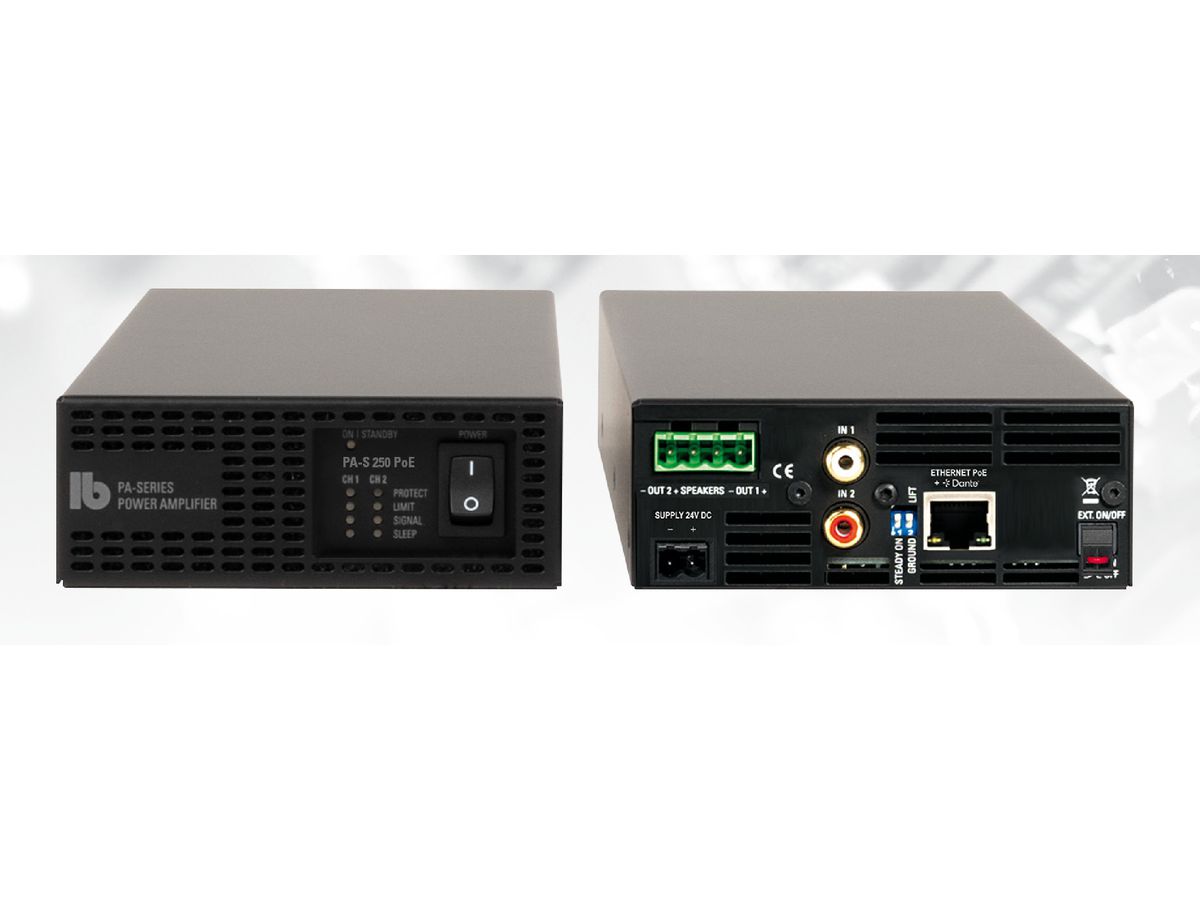

PA-S 250 PoE DSC Dante, 50 Watt
2 x Line In Cinch+Sym. 2-Kanal DANTE
EIA
1'004.00
Please log in to be able to use the shopping cart and then complete orders.
Log in
Compact power amplifier with DSP, PoE and DANTE
| Item no | 3005-0017 |
|---|---|
| Garantie | 5 Jahre Garantie |
:strip_icc():strip_exif()/brands/lb_schwarz-eisgrau.png "LB")
Description
The PA-S 250 PoE DANTE is an audiophile 2-channel amplifier for controlling our passive loudspeakers via a single network cable. In addition to the power supply, the digital audio signal, the control commands for configuration with the LB CONTROL app and the network commands for controlling or monitoring the amplifier are also transmitted via Ethernet. With an output power of 2 x 50 watts, the PA-S 250 PoE DANTE is capable of driving one or two pairs of speakers. A PoE 802.3bt power supply is required for this. If less power is available (PoE + or PoE 3at with 30 watts), the maximum output power is reduced accordingly.
In conjunction with our built-in speakers, decentralized ceiling sound reinforcement is possible with minimal cabling. The PA-S 250 PoE DANTE is placed through the installation opening of a built-in speaker in the suspended ceiling and inspected.
The integrated DSP is designed as a 4×2 mixer matrix with fully parametric filters, delays and limiters.
Alternatively, the PA-S 250 PoE DANTE can also be operated analog via RCA inputs and with an external 24V power supply. With DIP switches for ground lift and steady on as well as an on/off switch contact, the amplifier can be easily integrated into projects.
Highlights
- Remote-controlled 2-channel amplifier with PoE
- Power 2 x 50 watts into 4 ohms, 2 x 30 watts into 8 ohms
- Ethernet interface for DANTE + PoE + DSP control
- Configuration with the LB CONTROL app
- Controllable via network commands
- Fanless
- Switchable ground lift
- Auto-On/Off switchable
- Ext. ON/OFF contact
- Housing ¼ 19”, 1 U
- Optional: 100 V transformer
Specifications
| Verstärkertyp | Endstufe |
|---|---|
| Output power | 50 W |
| Gewicht netto | 0 kg |
| Gewicht brutto | 0 kg |
Colour and design
| Color | Schwarz |
|---|
Konnektivität
| Anschlüsse und Übertragungsstandard |
|
|---|---|
| Anzahl Kanäle Ausgang | 2 |
| Impedance | 4-8 Ohm |
| Multikanal | No |
Produktdimensionen
| Breite | 110 mm |
|---|---|
| Höhe | 42 mm |
| Tiefe | 223 mm |
