Description

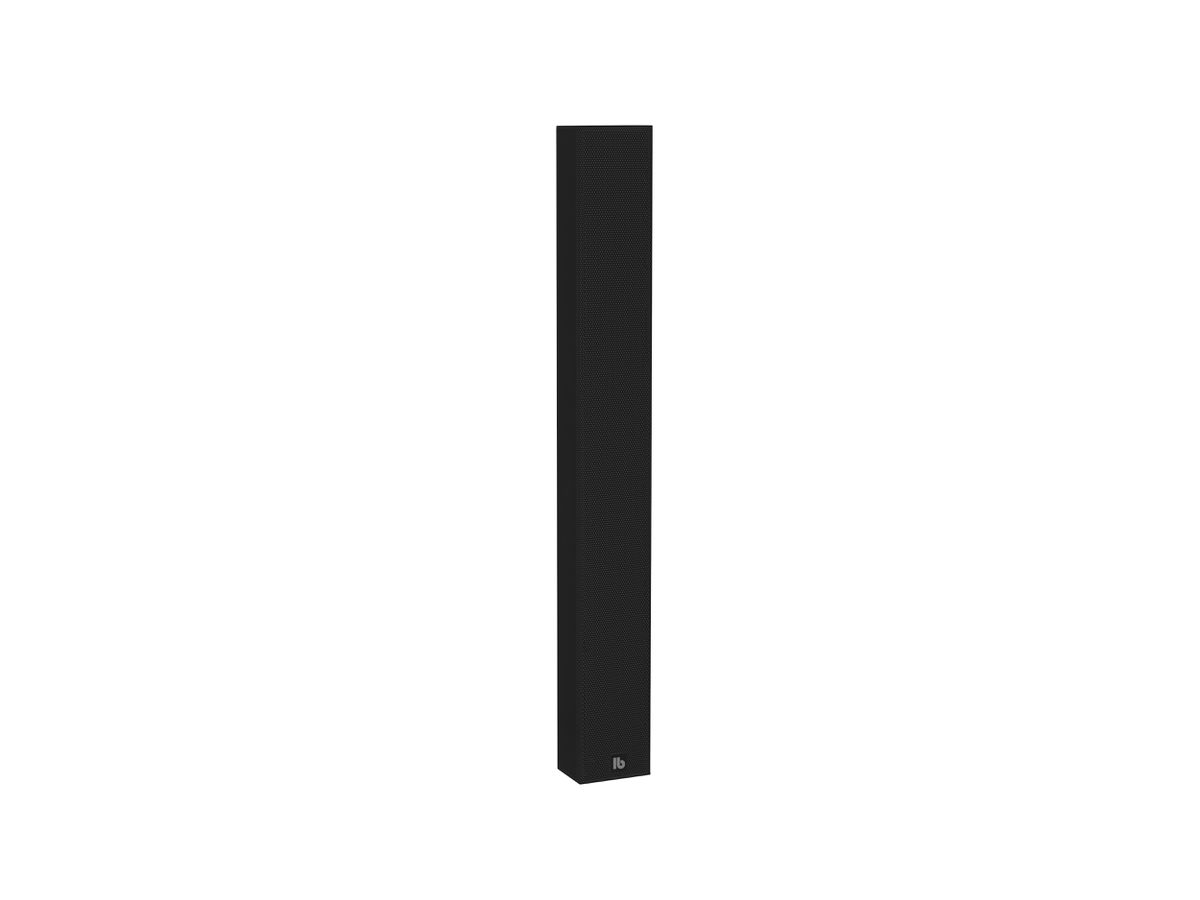

The S 403 is a flat surface-mounted loudspeaker with high efficiency for use as a front speaker in media rooms and in surround systems. The S 403 is equipped with 2 × 2.5" bass drivers, 2 × 2.5" bass-midrange drivers and a 1" dome tweeter with waveguide, giving it high efficiency, a wide dispersion angle and a wide frequency response with high speech intelligibility.

Mounted vertically, the S 403 is used in combination with subwoofers as a front speaker in surround systems and in media rooms. Mounted transversely below screens, the S 403 is ideally suited as a centre speaker due to its high speech intelligibility.

To complement the bass range, we recommend the SUB 20 (A) and SUB 40 (A) subwoofers.

Highlights

•         Beam angle (H × V) 100° × 100°
•         2 × 2.5" bass + 2 × 2.5" bass-midrange + 1" dome tweeter with waveguide
•         Flat surface-mounted speaker
•         Power handling 160 watts
•         8 Ohm and 100 V version
•         Standard colours white and black

Specifications

Lautsprecher Art	Front Aufbau
Empfohlene Verstärkerleistung 100V	30/15/7.5 Watt
Gewicht netto	0 kg
Gewicht brutto	0 kg

Colour and design

Color	Schwarz

Produktdimensionen

Breite	80 mm
Höhe	700 mm
Tiefe	48 mm

Downloads

LB Datenblatt S 403_2023.pdf (295.2 KB)

Download

Accessories

LB SH 50 schwarz
Schwenkhalterung für ZL-Serie

Pivotable wall bracket with 30 mm wall distance, black

Item No: 7110-0004

72.–

Available
