Description

Quad Pixel Drive for Detail-rich 4K Images with High Frame Rates

Quad Pixel Drive, Panasonic’s original 2-axis pixel-quadrupling technology, rapidly shifts each pixel vertically and horizontally to produce sharp, clear, and detail-rich 4K images for a maximum resolution of 3840 x 2160 pixels (16:9). Combined with the DMD’s high pixel-density and narrow aperture ratio, Quad Pixel Drive creates smooth, filmlike images with a superior sense of depth and definition, allowing viewers to retain complex information.

Highlights

• Stress-free installation flexibility
• Clear projection adapted to the room
• Efficient and environmentally conscious design

Specifications

Native image resolution	3840 x 2160 Pixels (4K)
Leuchtstärke in ANSI Lumen	5200 ANSI L
Bildseitenverhältnis	16:9
Kontrastverhältnis	20'000:1
Projektionsverhältnis	1.46-2.93:1
Projektionstechnologie	DLP
Gewicht netto	22.1 kg
Gewicht brutto	22.1 kg

Allgemeine Informationen

Nachhaltigkeit	No

Beamer features

Beamer type	Office
Lamp technology	Laser
Lampenlebensdauer	20'000h/24'000h Eco
Geräuschpegel max.	35 dB
Noise level Energy saving mode	28 dB
Trapezkorrektur	No
Lens Shift	Yes
Keystone horizontal	20 °
Keystone vertikal	40 °

Colour and design

Color	Weiss

Konnektivität

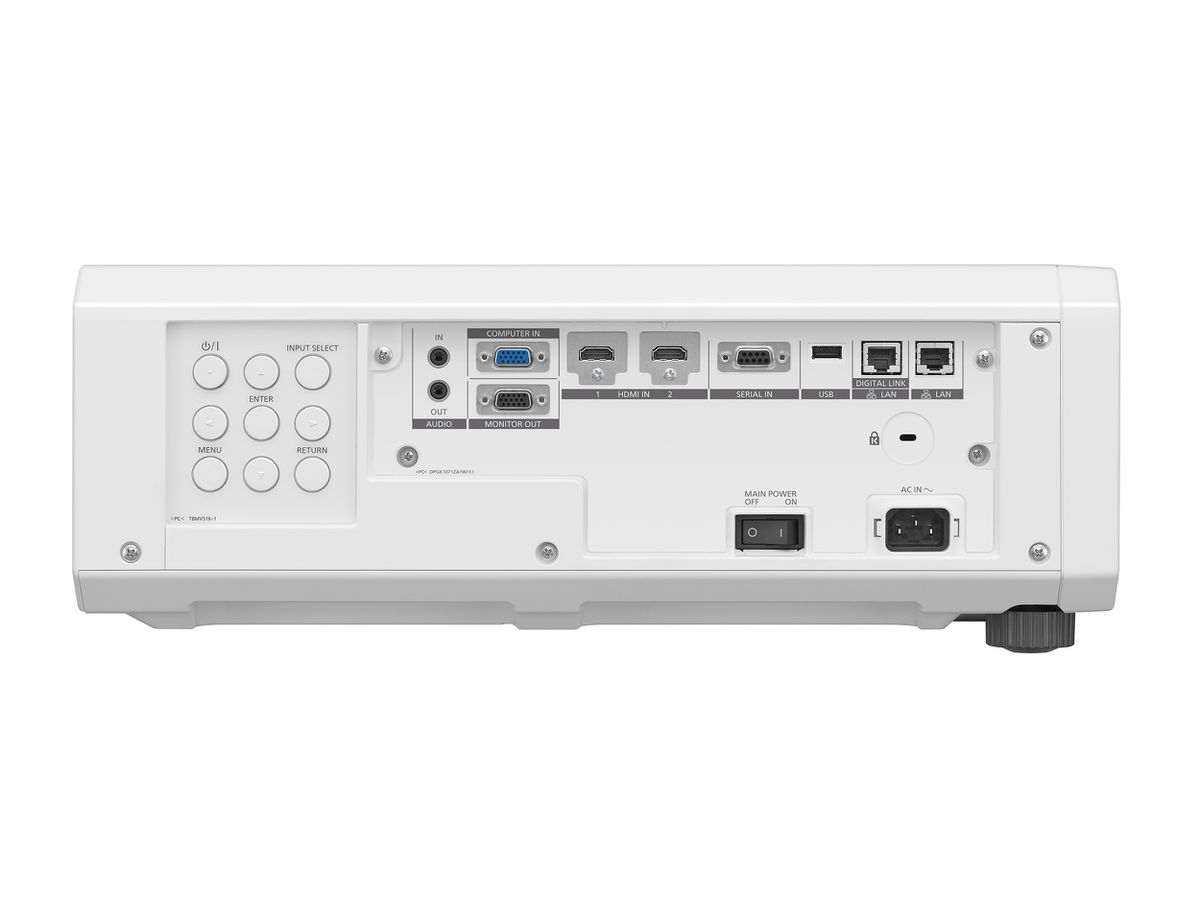

Anschlüsse und Übertragungsstandard	HDMI In RS-232 Klinke 3.5mm 3.5mm Audio Out RJ45/LAN USB

Produktdimensionen

Breite	498 mm
Höhe	168 mm
Tiefe	492 mm

Downloads

PT-FRQ50_Factsheet_ENG.pdf (413.2 KB)

Download

PT-FRQ50
