RTI KP-8
8 Tasten Bedienelement- PoE

Neuheit

RTI KP-8
8 Tasten Bedienelement- PoE

EIA
364.00

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
8 Button In-Wall PoE Keypad Controller
Item no 10-210850-17
EAN code 8100649913876
RTI

Description

The KP-8 keypad is the perfect addition to an RTI control system for fast and convenient control of music, lights, shades, and other devices or systems. With eight fully programmable buttons, the KP-8 keypad provides intuitive two-way feedback via configurable backlight colors for each button.

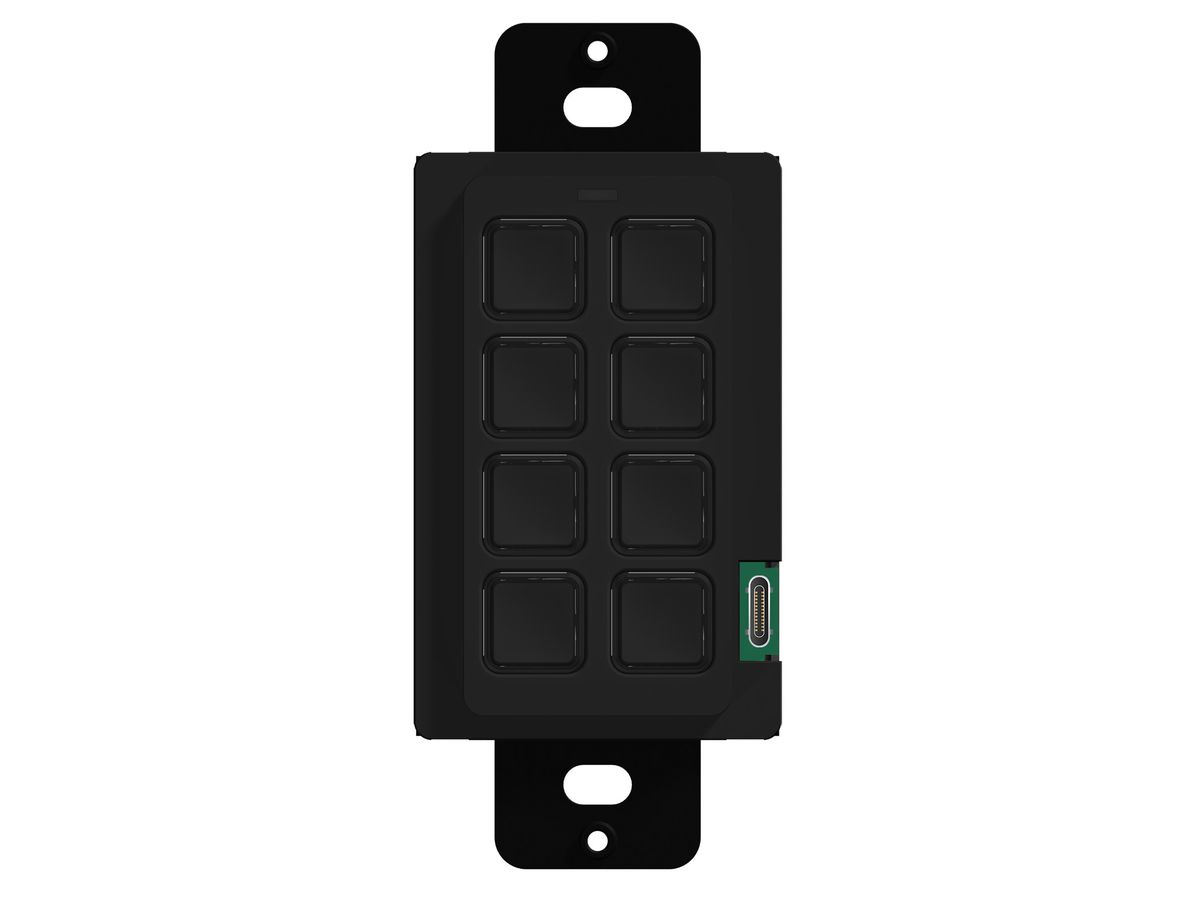

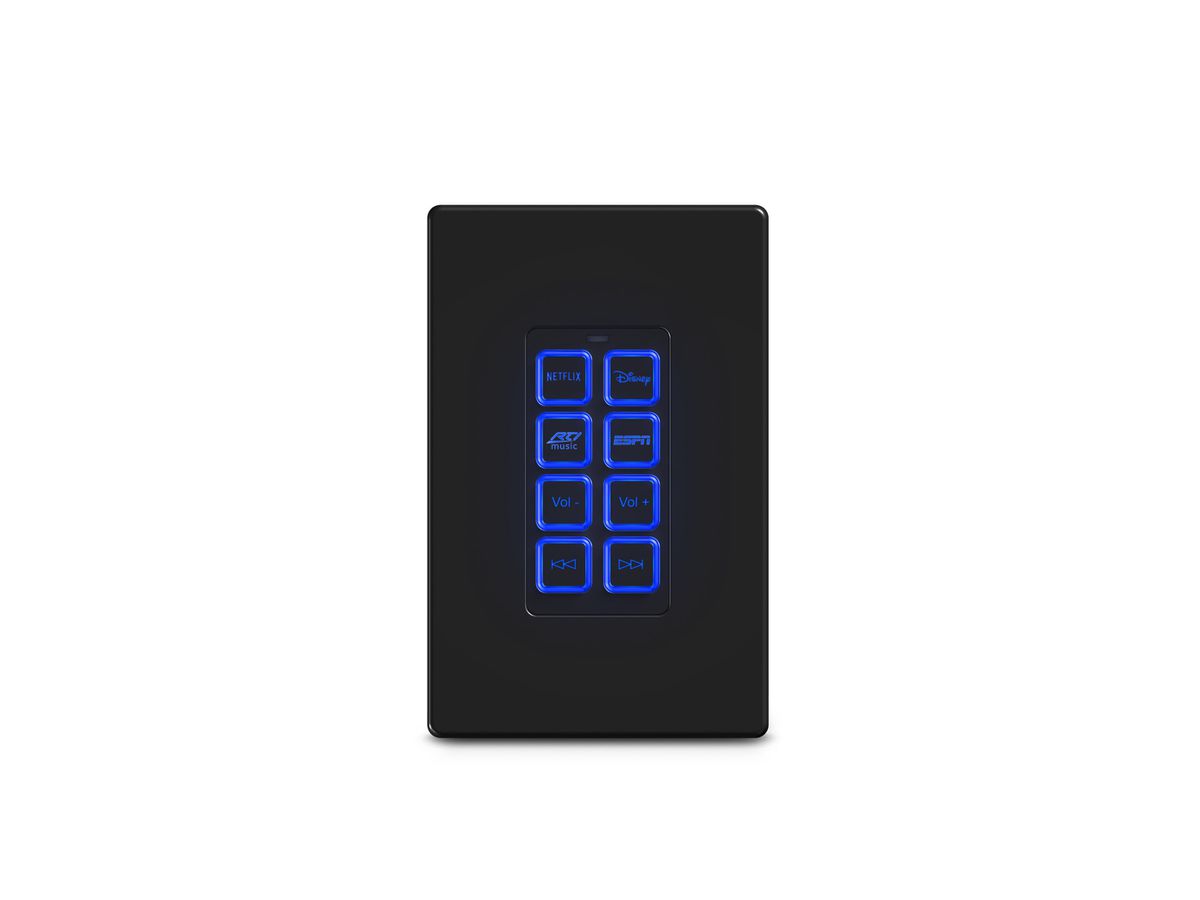

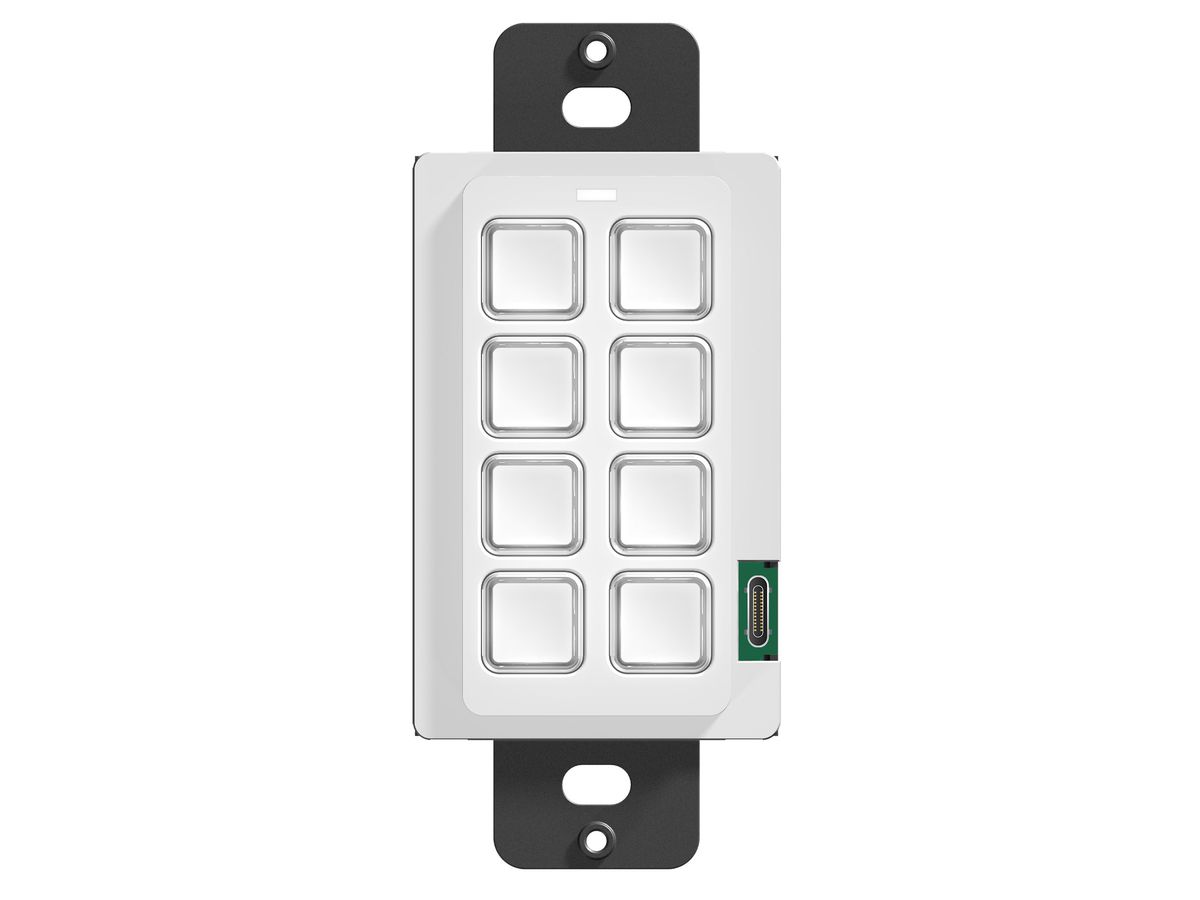

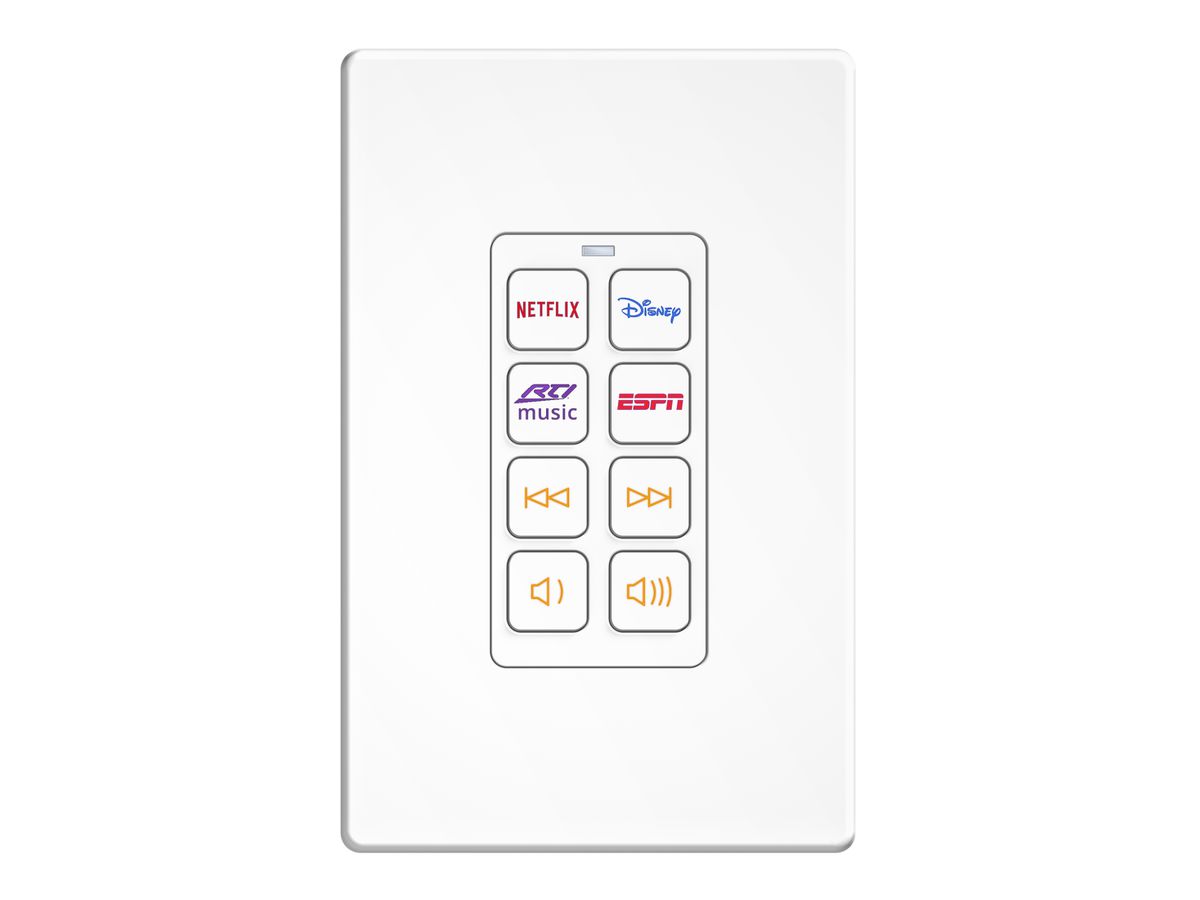

The KP-8 keypad ships with two sets of keypad faceplates and matching keycaps — one white and one black. For an elevated look and control experience, use RTI’s Laser SharkTM engraving service to personalize the keycaps with custom text and graphics. These are available in White and Satin Black.

Compatible with Decora® style wall plates and sized to fit in a single gang US box, the KP-8 keypad seamlessly integrates into homes and commercial buildings with a clean, intuitive on-wall control solution to match any decor.

For installation convenience, the KP-8 keypad is PoE powered, using the same network cable that runs control communication with the RTI processor.

Highlights

  • Programmable Buttons 8 buttons provide quick access to control functions such as lights, shades, music, and audio/video source selection.
  • In-Wall The flush-mount keypad design enables easy control of frequent home or business activities.
  • Ethernet
  • Use the existing standard home or corporate network infrastructure to connect the KP-8 keypad to the RTI processor
  • PoE Powered Use any PoE network switch to power the KP-8 keypad over the same network cable that runs control communication with the RTI processor.
  • 2-Way with Control Status Feedback Intuitive control is elevated with status feedback via the programmable button backlight colors
  • Ambient Light Sensor Adjusts the backlight brightness automatically depending on the ambient light.
  • Custom Engraved Keypad Buttons For an elevated look and even more intuitive control experience, use RTI Laser SharkTM engraving service to customize the key caps  with text and graphics.

Specifications

Gewicht netto 0.11 kg
Gewicht brutto 0.2 kg
Eigenschaften
Art der Bedienung Taster
power supply PoE
Konnektivität
Signalübertragungsstandard
  • Ethernet
  • Drahtgebunden
Anschlüsse und Übertragungsstandard RJ45/LAN
Montage
Einbau Yes
Produktdimensionen
Breite 46 mm
Höhe 104 mm
Tiefe 43 mm

Downloads

cutsheet_kp.pdf (716.5 KB)

Download

kp-keypads-dimensional-drawing.pdf (718.7 KB)

Download

kp_manual.pdf (1.0 MB)

Download
